Twistfix

Metal Fixings for Insulated Plasterboard
SKU
ISF18A-065-ZP-20
Price excl. VAT
£10.45
Price incl. VAT
£12.54
(14 items in stock)

Fixings for securing fixing plasterboard insulation sheets to brick and block walls. A galvanized mechanical anchor with a concave head to fix internal solid wall insulation

Insofast-18A is a fire proof insulation fixing having a self tapping shank and a dished head for indenting into plasterboard walls. The fastener drives through themal laminate sheets directly into Thermalite, Celcon or Durox lightweight blocks. A 4mm-5mm pilot hole is needed when fixing plasterboard insulation panels to brick, stone or concrete, depending on the strength of the masonry.

Recommended embedment into substrate :

Aircrete 50-75mm

Brick / Block 40-60mm

Softwood 35-50mm

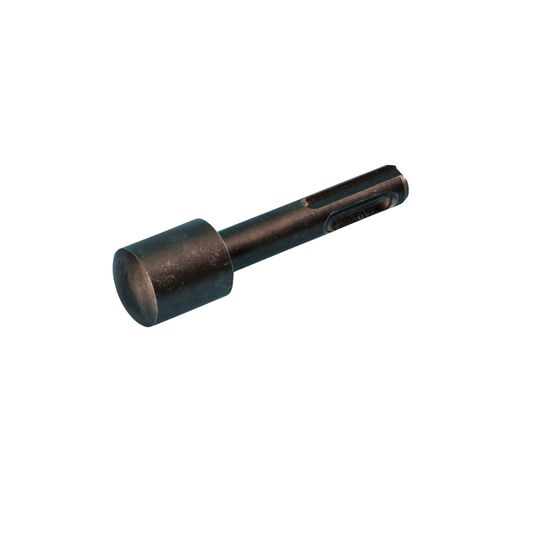

The dished head compresses the gyproc layer without tearing the paper surface, leaving a deep recess ready for accepting and retaining filler material. A handy SDS adapter enables Insofast insulated plasterboard fixings to be hammer driven at speed to reduce the labour costs for internal solid wall insulation upgrades.

These mechanical fixings for plasterboard faced thermal insulation can be used in conjunction with dot and dab adhesive or in place of it.

Suitable for fixing foam insulated plasterboard - Celotex PL4000 or Kingspan K17 and K18. Use also to fix drywall sheets having an insulating polystyrene layer - Knauf Insulated Laminates and for fixing drywall having fire proof mineral wool insulation - Rockwool Rockliner.

Insulated plasterboard fixings can be hammered into the pilot holes with a rubber mallet or with an appropriate SDS adaptor in a lightweight SDS drill set at slow speed and with rotary action disengaged. Buy corrosion resistant stainless steel fixing for use with phenolic foam plasterboard insulation and to minimise thermal bridging.
